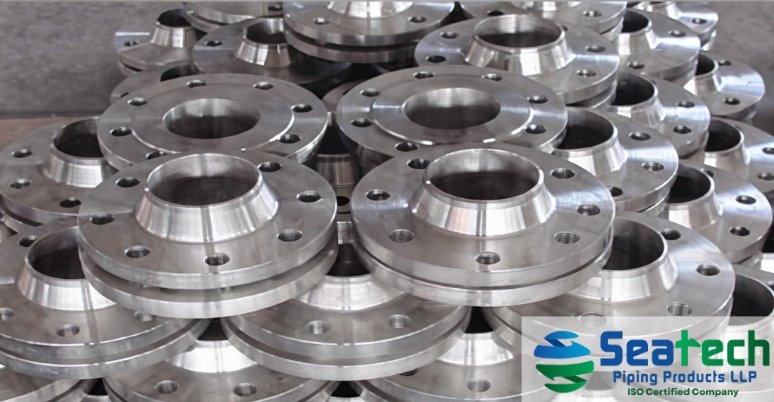

SMO 254 Flange Manufactuirer In India

ASTM A182 UNS S31254 Blind Flange, 6Mo Slip On Flange, 6Mo Slip On Flange Stockist, UNS S31254 Threaded Flange, SMO 254 Orifice Flange, SMO DIN 2.4819 Weld Neck Flange, large range of 254 SMO Pipe Flanges, check latest price of 6Mo WNRF Flange, SMO 254 Flanges Manufacturer In India

Seatech Piping Products LLP is one of the prime SMO 254 Flange Manufacturers in India, supplying top-quality flanges that satisfy the high standards of the industry as well as those that are international. High-tech manufacturing processes and better quality control systems are employed to make sure that it is durable, accurate, and has better corrosion resistance. We have a wide selection of SMO 254 Alloy Blind Flange that are manufactured with the punishing purpose of use in petrochemical, marine, and offshore environments. SMO 254 industrial flange are available in sizes between 1/2" (15 NB) and 48" (1200 NB) at the best price and guaranteed performance and supply on time.

Alloy 254 Lap Joint Flanges Exporter, 254 SMO Material, Stainless Steel Alloy 254 SMO Flanges, Class 150 SMO UNS S31254 flange, 254 SMO Forged Flanges, 254 SMO Blind Flanges Supplier In India

Seatech Piping Products LLP is a prominent SMO 254 Flange Manufacturer and Supplier in India. We supply high-quality SMO 254 Flange with 150 #, 300, 600, 900, 1500, and 2500 pressure classes along with PN6 to PN64 rating. Our SMO 254 Flange are SMO 254 Groove and Tongue Flange and JIS standards like JIS B2220 5K, 10K, 16K, and 20 K. We supply in other combinations of Flat Face (FF), Raised Face (RF), and Ring Type Joint (RTJ). We are also recognized as a leading Stainless Steel Pipe Fittings & SS Flange Manufacturer in India.

Specification Of SMO 254 Flange

Specification ASTM A182, SA 182, B564 / ASME SB564, ASTM B564 UNS S31254, ASME SB564 UNS S31254
UNS S31254 F44 Flange size 1/2" - 60"
Standards ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, BS, DIN, EN, GOST.
Alloy 254 6mo Flanges Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc
Main Types Forged / Threaded / Screwed / Plate
254 SMO Stainless Steel Flanges Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Types of F44 UNS S31254 Flanges
  • 254 SMO Weld Neck Ring Flange (WNRF)
  • UNS S31254 F44 Slip-On Ring Flange (SORF)
  • Alloy 254 6mo Blind Ring Flange (BLRF)
  • 254 SMO Stainless Steel Socket Weld Ring Flange (SWRF)
  • F44 UNS S31254 Threaded Ring Flange
  • Stainless Steel S31254 1.4547 Lap Joint Ring Flange (LJRF)
  • ASTM A182 SMO 254 Ring Type Joint Flange (RTJF)
ASTM A182 SMO 254 Flange Face Raised Face (RF), Flat Face(FF), Ring-Type Joint (RTJ), Tongue-and-Groove (T&G), Male-and-Female (M&F)

Types Of SMO 254 Flange

Get Free Quote

CTA Design

Contact Us For Quotation Now !

Figure

Why Choose Seatech Piping Product LLP For SMO 254 Flange Flange?

On-Time Delivery

Quality Products with Timely Delivery.

Quality Inspection

Advanced Technology For Quality Inspection.

Application Of Hastelloy Square Bar

Application Of SMO 254 Flange

  • Oil & Gas Industries
  • Valve And Pulp Industries
  • Refinary Industries
  • Heat Exchanger Industries
  • Paper & Pulp Industries

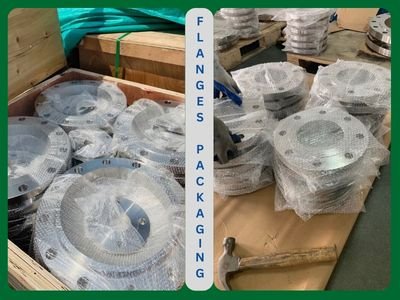

Packaging Of SMO 254 SWRF Flanges

  • Customized Packaging
  • Wooden Crates or Boxes
  • Bundled Packaging
  • Steel Strapped Bundles
  • Plastic Wrap
  • Shrink Wrap
Packaging Of Hastelloy Rectangular Bar

Chemical Composition of SMO 254 Flange

Elements Carbon Chromium Manganese Molybdenum Nickel Nitrogen Phosphorus Silicon Sulphur
SMO 254 UNS S31254 0.02 max 19.5-20.5 1.0 max 6.0-6.5 17.5-18.5 0.18-0.22 0.03 max 0.8 max 0.01 max

Mechanical Properties of SMO 254 Flange

Grade

Tensile Strength ksi (MPa) min

Yield Strength 0.2%
Offset ksi (MPa) min
Elongation –
% in
50 mm (min.)
Hardness
(Brinell) MAX
Hardness
(Rockwell B) MAX
254 SMO 100 (690) 45 (310) 35 223 96
254 SMO 95 (655) 45 (310) 35 223 96

SMO 254 Flange Equivalent Grades

STANDARD WERKSTOFF NR. UNS SIS AFNOR EN
SMO 254 1.4547 S31254 2378 Z1 CNDU 20.18.06Az X1CrNiMoCuN20-18-7
Stock Available of SMO 254 Flange
SMO 254 Threaded Flanges SMO 254 Weld Neck Flanges
SMO 254 Slip On Flanges SMO 254 Socket Weld Flanges
SMO 254 Blind Flanges SMO 254 Lap Joint Flanges
SMO 254 Plate Flanges SMO 254 Reducing Flanges
SMO 254 Orifice Flanges SMO 254 Nipo Flanges
SMO 254 Weldo Flanges SMO 254 Long Weld Neck Flanges
SMO 254 SWRF Flanges SMO 254 SORF Flanges
SMO 254 BLRF Flanges SMO 254 Flat Face Flanges
SMO 254 Loose Flanges SMO 254 Square Flanges
SMO 254 Expander Flanges SMO 254 Ring Type Joint (RTJ) Flanges
SMO 254 Groove & Tongue Flanges SMO 254 High Hub Blind Flanges
SMO 254 Spectacle Blind Flanges SMO 254 Weld Neck Flanges Series A & B
SMO 254 Spade & Ring Spacer Flanges SMO 254 Screwed Flanges
SMO 254 ASME B16.5 Flanges SMO 254 ASME B16.5 Forged Flanges
